Central Venous Catheter
Central venous catheter feature
Movable clamp allows anchorage at puncture site regardless of depth of catheter, which minimizes trauma and irritation to the puncturing site. Depth marking assists in accurate placement of central venous catheter from the right or left subclavian or jugular vein. Soft tip reduces trauma to vessel, minimizing vessel erosion, hemothorax and cardiac tamponade. Single, double, triple and quad lumen is available for choice.
Radiopacity facilitates confirmation of catheter placement. The multi-lumen version’s tips are more radiopaque, which makes it easy to confirm the placement of fluoroscopic tip. Vessel dilator ensures “super soft” catheters to be easily placed percutaneously.
Material of catheter - TPU (Medical grade Polyurethane)
- Flexibility: ABLE Central Venous Catheter is made of superior polyurethane with excellent elasticity, flow rate is secured in venous obstructions.
- Soft and elasticity. After insertion into body, it will become soft of 50% under body temperature(37°C). Forming according to the shape of blood vessel, reduce the trauma and anti-kink.
- Minimize the irritation of blood vessel
- Inner and outer of the catheter is smooth to protect the blood vessel, and avoid the thrombosis, reduce the resistance of catheterization.
- Catheter marking to show the length of insertion.
- The radiopaque tube and tip facilitate catheter location when visualized by X-Ray.
- Catheter is thin and smooth to minimize the effect on blood flow.
- Catheter lumen spaced regularly to keep unblocked blood flowing.
- Radiopaque, facilitates quick visualization under X-Ray.
Completeness
Baihe Medical provides full range of Central Venous Catheter in order to meet diversified clinical demands.
Range from 24 G single lumen to 8.5 Fr Quad lumen.
Central Venous Catheter - Standard Kits include
Kit composition
1. Central Venous Catheter
2. Guide-wire
3. Vessel Dilator
4. Clamp
5. Fastener: Catheter Clamp
6. Introducer Needle
7. Introducer Syringe
8. Injection Needle
9. Injection Cap
Central Venous Catheter - Optional Compound Kits include
Kit composition
1. Central Venous Catheter
Standard Kit Accessories
2. 5ml Syringe
3. Surgical Gloves
4. Surgical Pledget
5. Surgery Sheet
6. Surgery Towel
7. Sterile Brush
8. Gauze Pad
9. Suture of Needle
10. Wound Dressing
11. Scalpel
CENTRAL VENOUS CATETHER by BAIHE MEDICAL

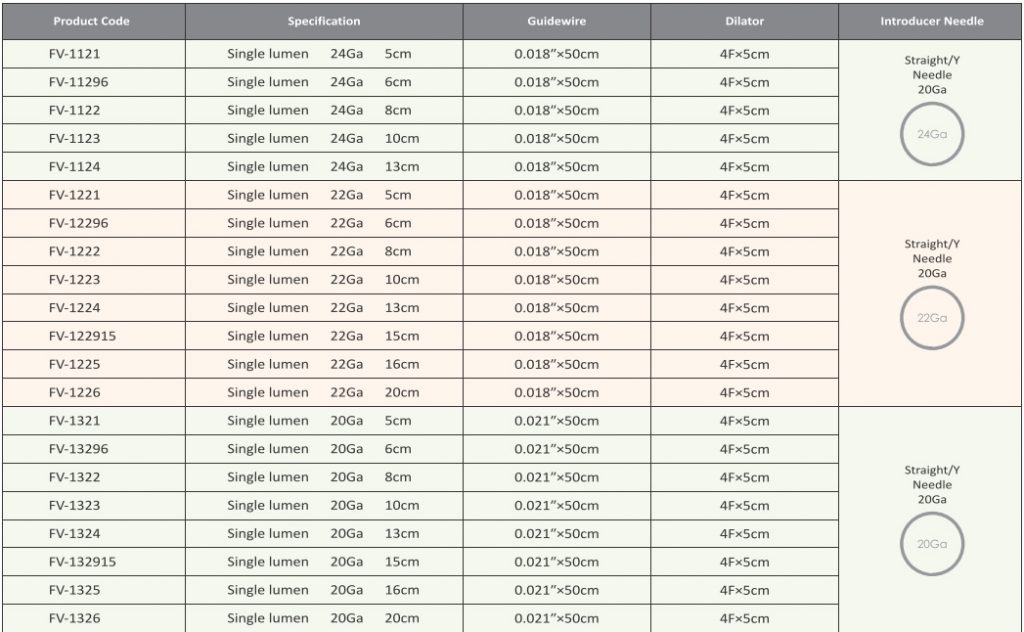

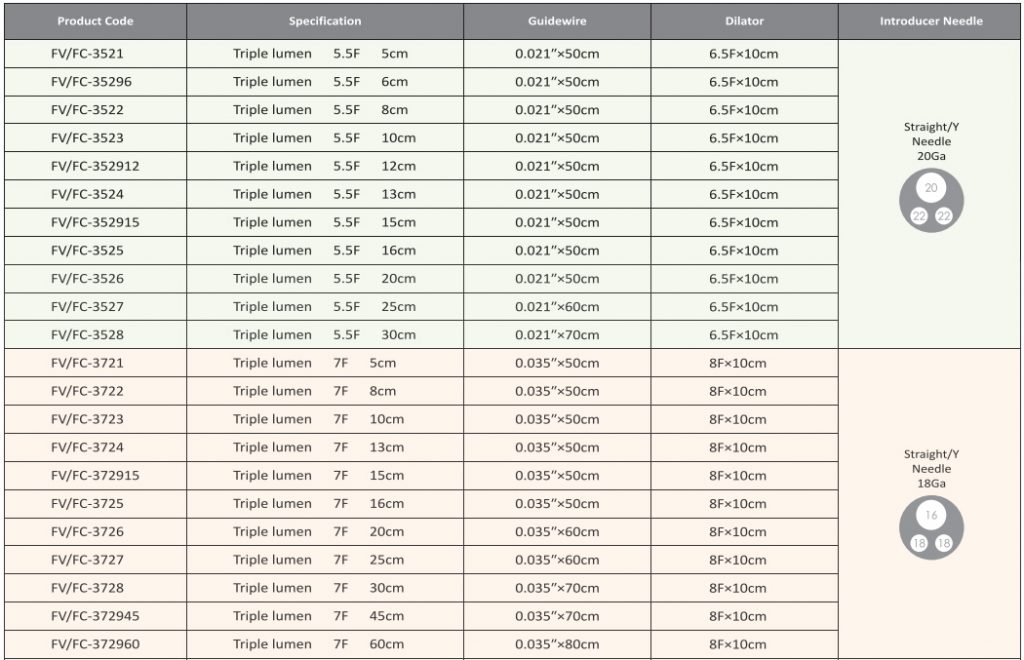

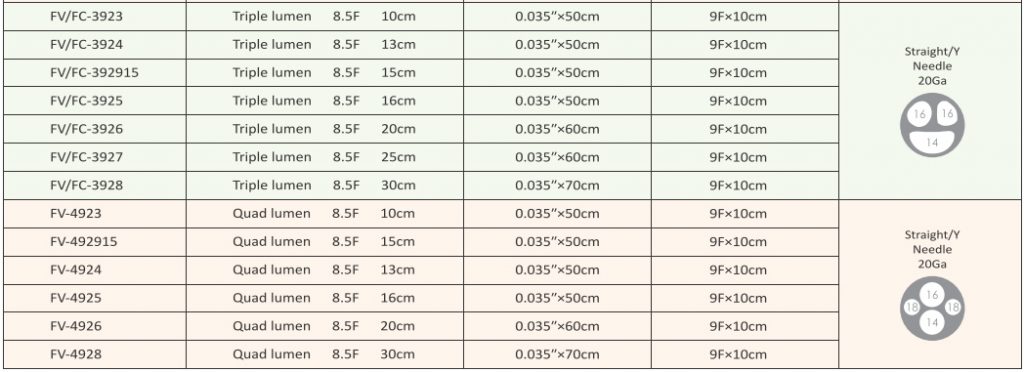

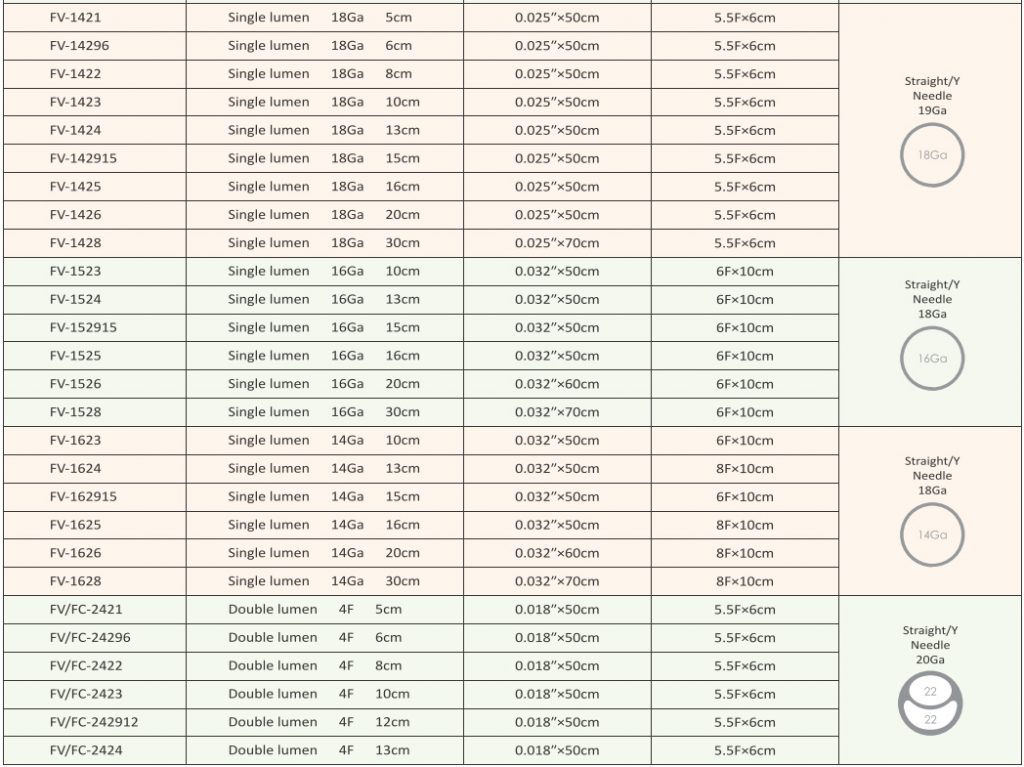

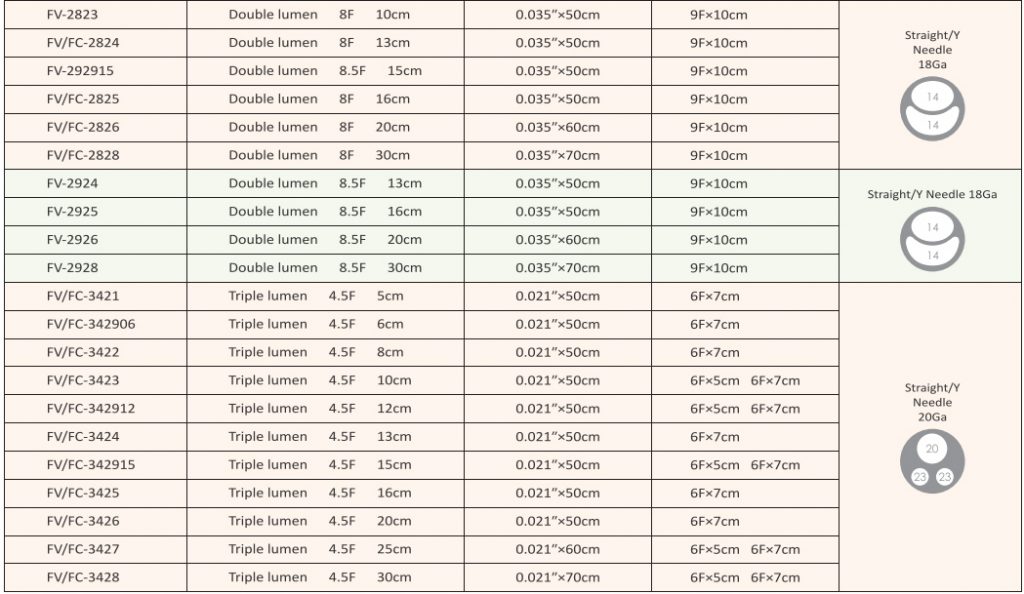

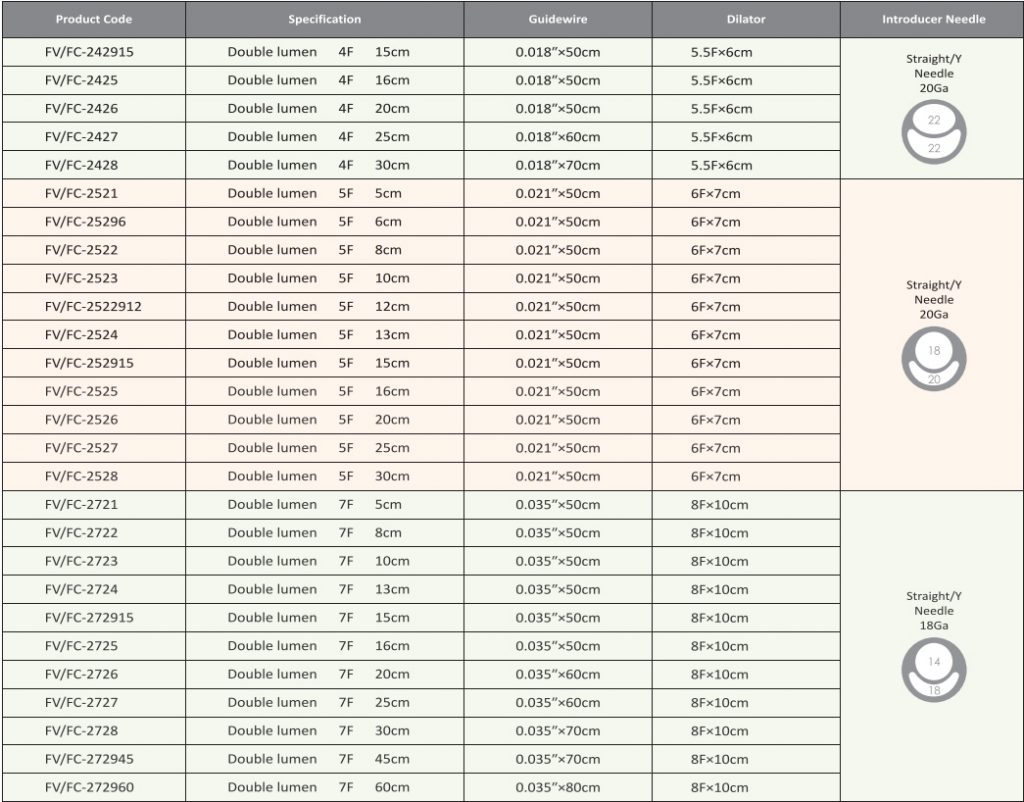

ORDER INFORMATIONS
1. The product codes in this chart are for CVC kits with straight introducer needle configuration.
2. CVC kits with Y-shaped introducer needle configuration are also available in adult types. The product code of CVC kit with Y-shaped introducer needle configuration is to add letter “Y” after the product code of CVC kit with straight introducer needle configuration, for example, “FC-2726Y”. Before you order, please clarify which configuration you request, either straight or Y-shape introducer needle.
3. Pediatric types of CVC include single lumen 22Ga, 20Ga, 18Ga; double lumen 4Fr, 5Fr;triple lumen 4.5Fr and triple lumen 5.5Fr.
4. Adult types of CVC include single lumen 16Ga, 14Ga; double lumen 7Fr, 8Fr, 8.5Fr; triple lumen 7Fr, 8.5Fr and quad lumen 8.5Fr.
5. “FV” in the product code for single lumen CVC means with cylinder hub.
6. “FC” in the product code for double lumen, triple lumen, quad lumen CVC means with triangular hub. “FV” in the product code for double lumen, triple lumen, quad lumen CVC means with round hub.
Radiopacity facilitates confirmation of catheter placement. The multi-lumen version’s tips are more radiopaque, which makes it easy to confirm the placement of fluoroscopic tip. Vessel dilator ensures “super soft” catheters to be easily placed percutaneously.
Frequently asked questions about Central Venous Catheter
The product codes in this chart are for CVC kits with straight introducer needle configuration.
CVC kits with Y-shaped introducer needle configuration are also available in adult types. The product code of CVC kit with Y-shaped introducer needle configuration is to add letter “Y” after the product code of CVC kit with straight introducer needle configuration, for example, “FC-2726Y”.
Before you order, please clarify which configuration you request, either straight or Y-shape introducer needle.
Pediatric types of CVC include single lumen 22Ga, 20Ga, 18Ga； double lumen 4Fr, 5Fr；triple lumen 4.5Fr and triple lumen 5.5Fr.
Product customization on demand, don’t hesitate to contact us for more information.
