I.V. Cannula

As one of the intravenous (I.V.) therapy products, ABLE® I.V. Cannulas (also known as I.V. Catheters) are core products designed for safe and efficient vascular access, widely used in hospitals, clinics, and other healthcare settings globally.

The safety-focused, high-quality I.V. Cannulas designed to meet the demanding needs of modern intravenous therapy.

FEATURES

  • Safety & Reliability

Safety Engineered Designs: include safety mechanisms (passive shielding) to Prevents Needlestick Injuries (NSIs).
Precision Bevel Needles: Ultra-sharp, siliconized needles for smooth insertion and reduced patient trauma.
Flashback Chamber: Clear chamber for immediate, visible blood return confirmation upon successful venipuncture.

  • Material Quality & Biocompatibility

Made from premium medical-grade materials polyurethane (TPU) for the catheter, stainless steel for the needle.
High biocompatibility to minimize the risk of phlebitis or irritation.

  • Product Range & Versatility

Available in a comprehensive range of gauges (e.g., 14G, 16G, 18G, 20G, 22G, 24G, 26G) to suit various patient needs and infusion therapies.
Different lengths for peripheral or specific site access.
Options include safety vs. standard configurations.

  • Design for Performance

Smooth Tapered Catheter: Facilitates easier insertion and transition from needle to catheter.
Flexible Cannula: Enhances patient comfort during infusion and reduces the risk of vessel damage.
Secure Wings & Stabilization: Winged models provide better fixation and stability at the insertion site.
Clear Hub option: Allows visualization of blood flashback and connection status.

Standard version

With heparin cap port

Soft Tip

Soft tip reduces trauma to vessel, minimizing vessel erosion, hemothorax and cardiac tamponade. Single, double, triple and quad lumen is available for choice.

ECG Cable

ECG Cable is avalaible.

Needle free version

With negative or positive pressure needle free port

Radiopacity

Radiopacity facilitates confirmation of catheter placement. The multi-lumen version's tips are more radiopaque, which makes it easy to confirm the placement of fluoroscopic tip.

Antibacterial CVC

The tubing is made from polyurethane which mixed with silver-containing zirconium phosphate at nanometer level, when the catheter is placed into the body, Ag+ will be released to inhibit bacteria growing.

Standard version

With heparin cap port

Needle free version

With negative or positive pressure needle free port

Safety version

Safety mechanism with heparin cap port

Safety needle free version

Safety mechanism with negative pressure needle free port

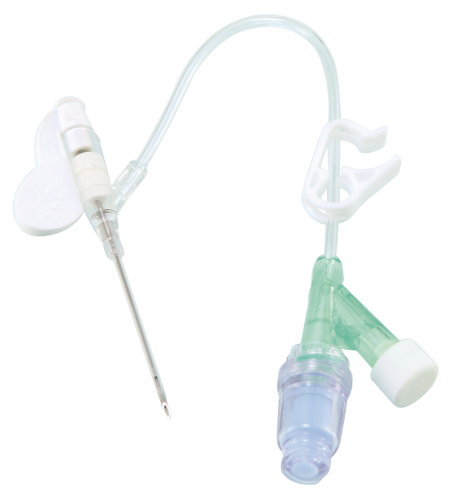

IV-cannula-feature 4

Double Safety version

Safety mechanism with positive pressure needle free port
– Prevent blood back flow
– Infection control

SPECIFICATIONS

Single units: packed in composite blister tray heat sealed with paper.
Secondary packaging: Single layer corrugated paper.
Tertiary packaging: Double walled corrugated board.

 Number of piecesDimensions
Box5025*98*13.3cm
Mid Carton20041.5*26.5*15.5cm
Shipping Carton100062*36*65cm
REFProduct description
 SizeLength Type color coding
632184218G 30mm Double Safety (safety + positive pressure)Green
6311841Safety
6241841Y type
6251842Normal
6261844Positive Pressure
632204220G 30mm Double Safety (safety + positive pressure)Pink
6312041Safety
624203125mm Y type
6252032Normal
6262034Positive Pressure
632223122G 25mm Double Safety (safety + positive pressure)Blue
6312231Safety
6242231Y type
6252232Normal
6262234Positive Pressure
632242224G 19mm Double Safety (safety + positive pressure)Yellow
6312421Safety
6242421Y type
6252422Normal
6262424Positive Pressure
632261226G 14mm Double Safety (safety + positive pressure)Purple
6312611Safety
6242611Y type
6252612Normal
6262614Positive Pressure
