Extension tube
The ABLE® series of extension sets is designed for reliability and safety in IV therapy, infusion systems, and critical care. We excel in core performance for routine infusion therapy. The products combine rigorous manufacturing standards with cost-effective innovation tailored for modern healthcare demands.
FEATURES
- Material
Made by medical-Grade Polymers DEHP free PVC (flexible, cost-effective) or TPU for neonatal/pediatric safety.
Non-latex to prevent allergic reactions.
Transparency: Visual fluid/air bubble monitoring.
- Dimensions & Design
Length: 10–200 cm (common: 15–30 cm for IV extensions; 100+ cm for epidural/enteral).
Inner Diameter (ID): 1.0–4.0 mm (e.g., microbore ≤1 mm for precise dosing; macrobore ≥2.5 mm for rapid flow).
Outer Diameter (OD): 2.0-5.4 mm, standardized to fit clamps, pumps, and securement devices.
Coiled/Straight Configurations: Kink-resistant designs.
Various version available to satisfy as much as clinical use.
Medical grade polyurethane
Tapered tip facilitates ease of insertion without use of peel-away sheath. Reduces vessel trauma during insertion.
Various shape designs
Radiopaque, facilitates quick visualization under X-Ray.
Silicone Extension Tube
Increases patient comfort, will not crimp over time, able to visualize fl uids.
High flow type
Higher flow rate and reduce wall suction.
Seldinger method
2.5cm far from end hole reduces recircling and wall-suction. Minimizes risk of clot formation.
Suitable for connection
The equipped suction tube is suitable for the connection of common clinical drainage bags and negative pressure devices, and has a speed regulating device.
Safety tube body design
Single, double, triple lumen.
Compound-packaging Tray
Various Accessories for choice.

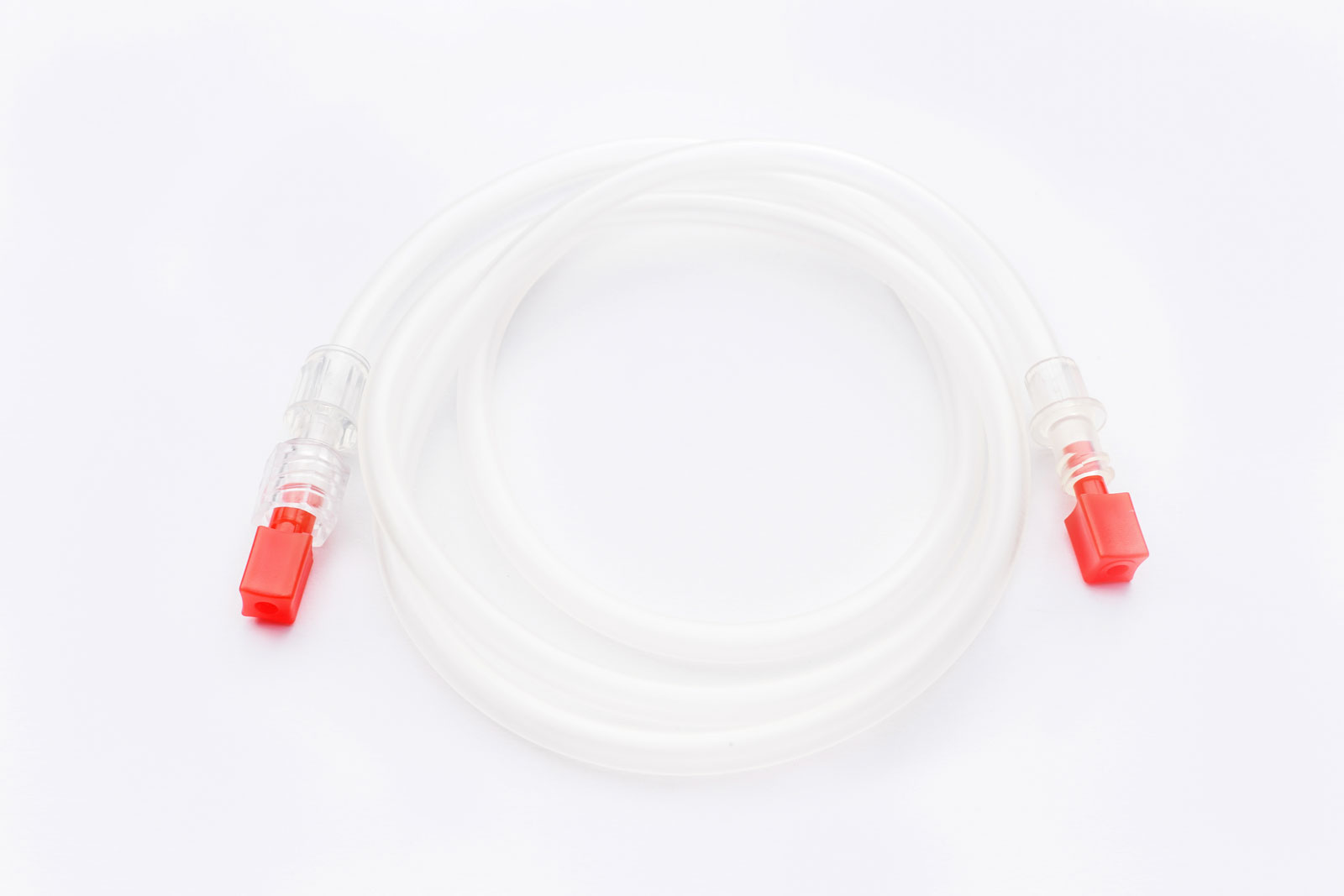

Standard extension tube - PVC (DEHP free)
Non-Toxic: No DEHP leaching, safe for neonates, pregnant patients, and long-term infusions, to avoid endocrine disruption risks. Clarity: Transparent for easy air bubble/fluid monitoring. Flexibility: Softer than standard PVC, yet maintains kink resistance. Cost-Efficiency: cheaper than TPU/silicone alternatives, daily hydration/medication infusion. Enteral Feeding: Compatible with most nutritional formulas (non-lipid based). Dimensions: 1.0 (ID) x 2.0 (OD), 2.2 (ID) x 3.6 (OD), 3.0 (ID) x 4.0 (OD), 4.0 (ID) x 5.4 (OD), length from 10cm to 200cm

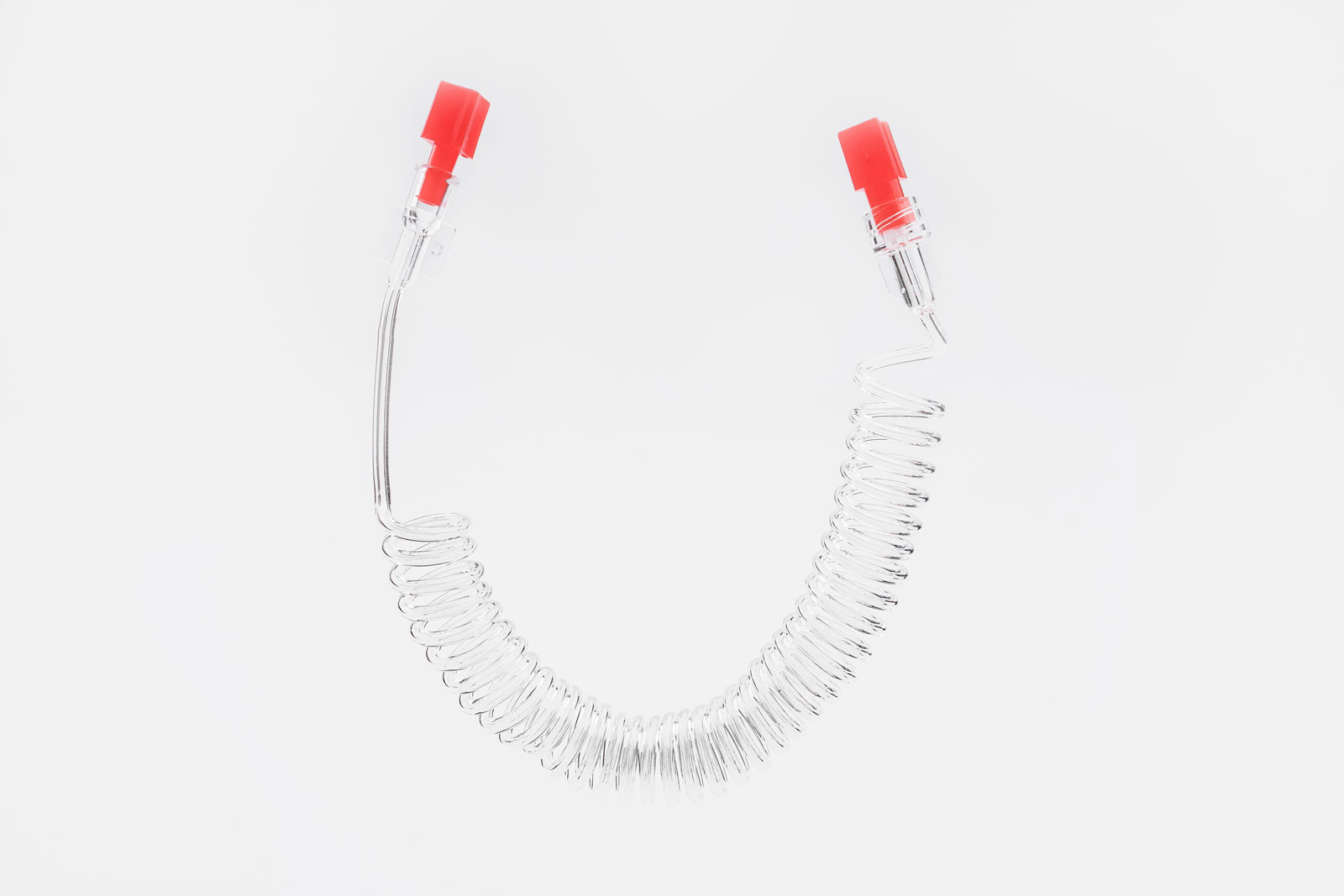

Spiral extension tube - TPU
Spiral/Screw Coil Design: 360° Helical Structure: Extends like a spring under tension (up to 2–3× its resting length). Memory Elasticity: Returns to original length when relaxed. TPU Material: For lipid/chemotherapy compatibility; High pressure 350PSI Kink Resistance: Maintains patency even when twisted/bent. Enhanced Mobility: Ideal for pediatric, geriatric, or agitated patients prone to pulling lines. Transparency: Visual fluid/air bubble monitoring. Prevents Complications: Catheter dislodgement, infiltration, or restart injuries. Improves Patient Comfort: Reduces line tension during movement. Lowers Workload: Fewer line adjustments/reinsertions needed by staff.

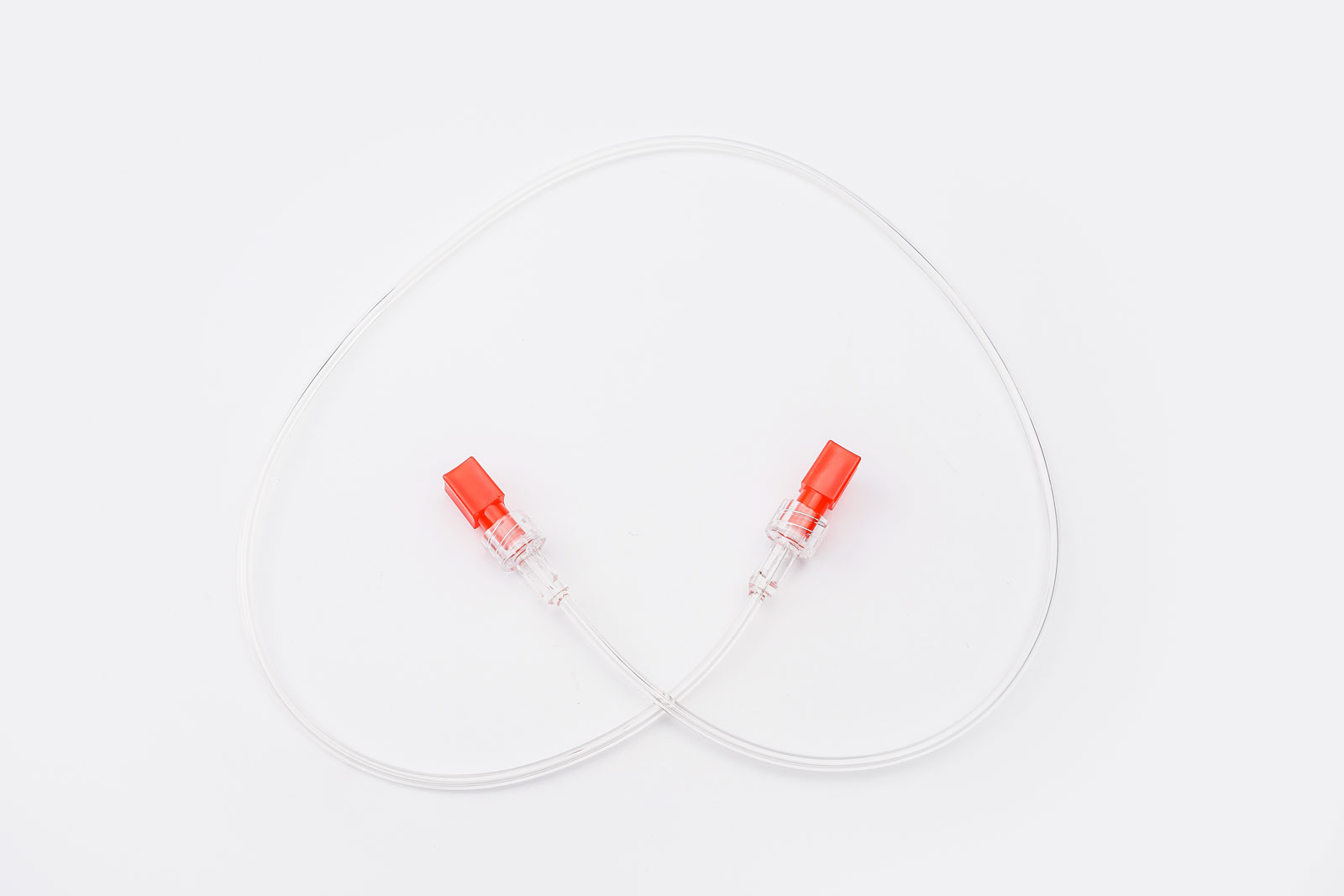

Standard extension tube - TPU
Non-toxic: non-leaching, free of DEHP/phthalates, safe for neonates, pregnant patients, and long-term infusions, to avoid endocrine disruption risks. Flexibility: Maintains softness even at low temperatures (e.g., ICU/OR environments). Recovers shape after compression. Durability: resists abrasion, cracking, and tearing during clinical handling. Chemical Compatibility: Inert to lipids, alcohols, and aggressive drugs (e.g., chemotherapy, propofol). Clarity: Crystal-clear for visual fluid monitoring and air bubble detection. High pressure: 350PSI Dimensions: 1.0 (ID) x 2.7 (OD), length from 10cm to 200cm

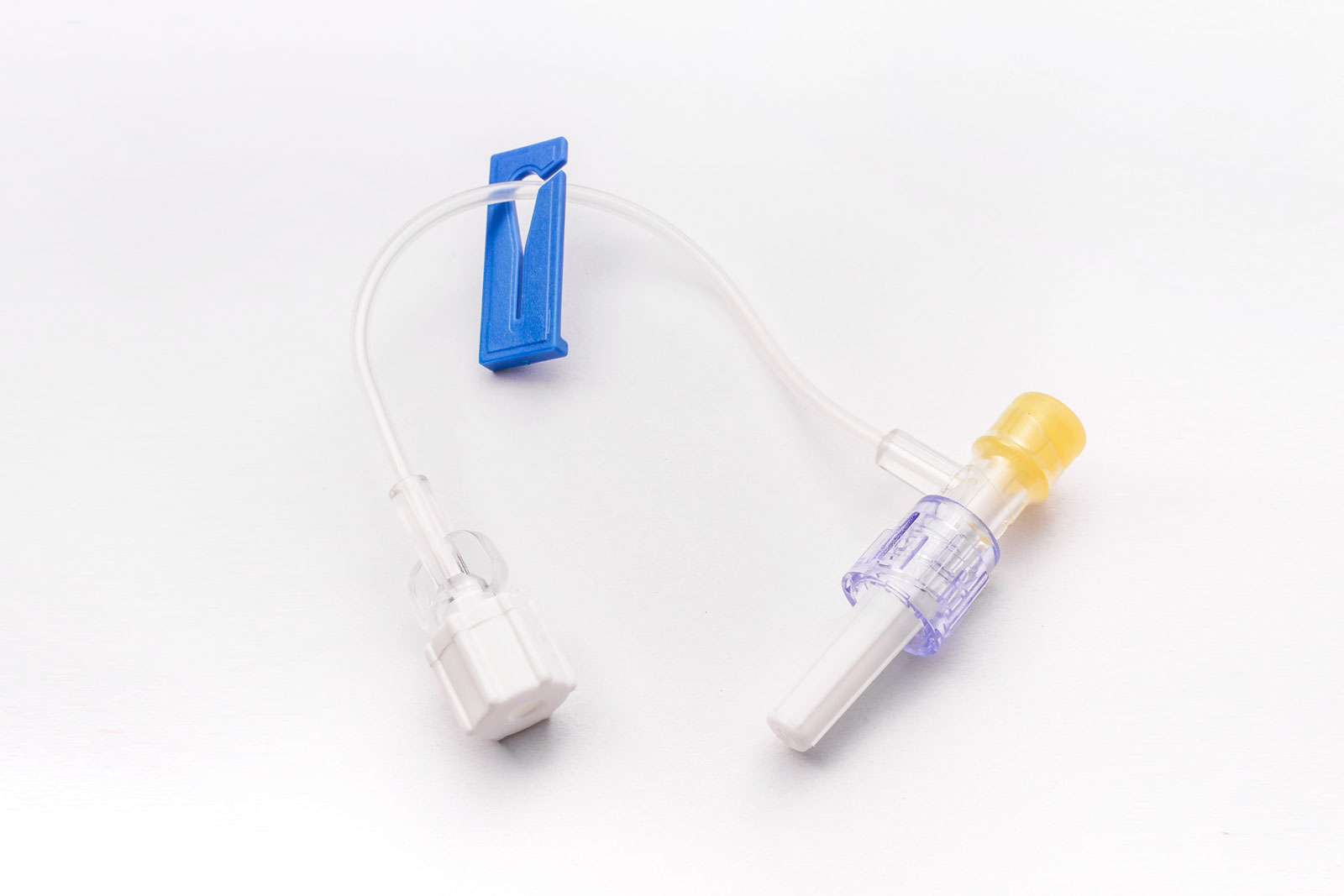

T-shaped extension tube
Integrated 90° Side Access Port: Creates a perpendicular branch from the main lumen for secondary line access. Tri-Directional Flow: Enables simultaneous/serial connections to: - Patient end (e.g., catheter). - Primary infusion line (e.g., IV fluid). - Secondary port (e.g., medication syringe, flush). Line Management: Organizes multiple lines at 90° angles Use Case: Multi-infusion, pressure monitoring TPU Material option: For lipid/chemotherapy compatibility; High pressure 350PSI
SPECIFICATIONS
Single units: packed in peelable bag
Secondary packaging: Single layer corrugated paper.
Tertiary packaging: Double walled corrugated board.
| Number of pieces | Dimensions | |
| Box | 50 / 100 / 200 | 33*29*28cm |
| Shipping Carton | 200 / 400 / 800 | 62*36*59cm |
| Product | REF | Description | Length cm |
| Standard Extension Tube | FS-T1201 | PVC (DEHP free) – ID1.0mm x OD2.0mm – M/F connector | 10 |
| FS-T1202 | 15 | ||
| FS-T1203 | 25 | ||
| FS-T1204 | 50 | ||
| FS-T1205 | 100 | ||
| FS-T1206 | 120 | ||
| FS-T1207 | 150 | ||
| FS-T1208 | 200 | ||
| FS-T1209 | 250 | ||
| FS-T1210 | 300 | ||
| FS-T2401 | PVC (DEHP free) – ID2.2mm x OD3.6mm – M/F connector | 10 | |
| FS-T2402 | 15 | ||
| FS-T2403 | 25 | ||
| FS-T2404 | 50 | ||
| FS-T2405 | 100 | ||
| FS-T2406 | 120 | ||
| FS-T2407 | 150 | ||
| FS-T2408 | 200 | ||
| FS-T2409 | 250 | ||
| FS-T2410 | 300 | ||
| FS-T2601 | PVC (DEHP free) – ID3.0mm x OD4.0mm – M/F connector | 10 | |
| FS-T2602 | 15 | ||
| FS-T2603 | 25 | ||
| FS-T2604 | 50 | ||
| FS-T2605 | 100 | ||
| FS-T2606 | 120 | ||
| FS-T2607 | 150 | ||
| FS-T2608 | 200 | ||
| FS-T2609 | 250 | ||
| FS-T2610 | 300 | ||
| FS-T3001 | PVC (DEHP free) – ID4.0mm x OD5.4mm – M/F connector | 10 | |
| FS-T3002 | 15 | ||
| FS-T3003 | 25 | ||
| FS-T3004 | 50 | ||
| FS-T3005 | 100 | ||
| FS-T3006 | 120 | ||
| FS-T3007 | 150 | ||
| FS-T3008 | 200 | ||
| FS-T3009 | 250 | ||
| FS-T3010 | 300 | ||
| FS-P1401 | PU – ID1.0mm x OD2.7mm – M/F connector | 10 | |
| FS-P1402 | 15 | ||
| FS-P1403 | 25 | ||
| FS-P1404 | 50 | ||
| FS-P1405 | 100 | ||
| FS-P1406 | 120 | ||
| FS-P1407 | 150 | ||
| FS-P1408 | 200 | ||
| FS-P1409 | 250 | ||
| FS-P1410 | 300 | ||
| Spiral Extension Tube | FS-P1403S | PU – ID1.0mm x OD2.7mm – M/F connector | 25 |
| FS-P1404S | 50 | ||
| FS-P1405S | 100 | ||
| FS-P1406S | 120 | ||
| FS-P1407S | 150 | ||
| FS-P1408S | 200 | ||
| FS-P1409S | 250 | ||
| FS-P1410S | 300 | ||
| T-shaped Extension Tube | 20T-FS-T1201 | PVC (DEHP free) – ID1.0mm x OD2.0mm | 10 |
| 20T-FS-T1202 | 15 | ||
| 20T-FS-T1203 | 25 | ||
| 20T-FS-T1204 | 50 | ||
| 20T-FS-T1205 | 100 | ||
| 20T-FS-T1206 | 120 | ||
| 20T-FS-T1207 | 150 | ||
| 20T-FS-P1201 | PU – ID1.0mm x OD2.0mm | 10 | |
| 20T-FS-P1202 | 15 | ||
| 20T-FS-P1203 | 25 | ||
| 20T-FS-P1204 | 50 | ||
| 20T-FS-P1205 | 100 | ||
| 20T-FS-P1206 | 120 | ||
| 20T-FS-P1207 | 150 |
