Infusion products Canule IV
Canule IV
As one of the intravenous (I.V.) therapy products, ABLE® I.V. Cannulas (also known as I.V. Catheters) are core products designed for safe and efficient vascular access, widely used in hospitals, clinics, and other healthcare settings globally.
The safety-focused, high-quality I.V. Cannulas designed to meet the demanding needs of modern intravenous therapy.
CARACTÉRISTIQUES
Safety & Reliability
Safety Engineered Designs: include safety mechanisms (passive shielding) to Prevents Needlestick Injuries (NSIs).
Precision Bevel Needles: Ultra-sharp, siliconized needles for smooth insertion and reduced patient trauma.
Flashback Chamber: Clear chamber for immediate, visible blood return confirmation upon successful venipuncture.
- Material Quality & Biocompatibility
Made from premium medical-grade materials polyurethane (TPU) for the catheter, stainless steel for the needle.
High biocompatibility to minimize the risk of phlebitis or irritation.
- Product Range & Versatility
Available in a comprehensive range of gauges (e.g., 14G, 16G, 18G, 20G, 22G, 24G, 26G) to suit various patient needs and infusion therapies.
Different lengths for peripheral or specific site access.
Options include safety vs. standard configurations.
- Design for Performance
Smooth Tapered Catheter: Facilitates easier insertion and transition from needle to catheter.
Flexible Cannula: Enhances patient comfort during infusion and reduces the risk of vessel damage.
Secure Wings & Stabilization: Winged models provide better fixation and stability at the insertion site.
Clear Hub option: Allows visualization of blood flashback and connection status.

Version standard
avec bouchon hépariné

Embout souple
Soft tip reduces trauma to vessel, minimizing vessel erosion, hemothorax and cardiac tamponade. Single, double, triple and quad lumen is available for choice.

Câble ECG
Un câble ECG est disponible.

Version sans aiguille
avec port sans aiguille à pression négative ou positive

Radiopacité
La radio-opacité facilite la confirmation du positionnement du cathéter. Les extrémités de la version multi-lumières sont plus radio-opaques, ce qui facilite la confirmation du positionnement de l'extrémité sous contrôle fluoroscopique.

CVC antibactérien
The tubing is made from polyurethane which mixed with silver-containing zirconium phosphate at nanometer level, when the catheter is placed into the body, Ag+ will be released to inhibit bacteria growing.
Version standard
avec bouchon hépariné
Version sans aiguille
avec port sans aiguille à pression négative ou positive
Version de sécurité
Mécanisme de sécurité avec orifice pour bouchon hépariné
Version sans aiguille de sécurité
Mécanisme de sécurité avec port sans aiguille à pression négative
Version à double sécurité
Safety mechanism with positive pressure needle free port
– Prevent blood back flow
– Infection control
SPÉCIFICATIONS
Unités individuelles : conditionnées sous blister composite thermoscellé avec du papier.
Emballage secondaire : carton ondulé simple couche. E
E
mballage tertiaire : carton ondulé double cannelure.
| Nombre de pièces | Dimensions | |
| Boîte | 50 | 25*98*13.3cm |
| Moyen carton | 200 | 41.5*26.5*15.5cm |
| Carton d'expédition | 1000 | 62*36*65cm |
| RÉF | Description du produit | |||
| Size | Length | Type | color coding | |
| 6321842 | 18G | 30mm | Double Safety (safety + positive pressure) | Green |
| 6311841 | Safety | |||

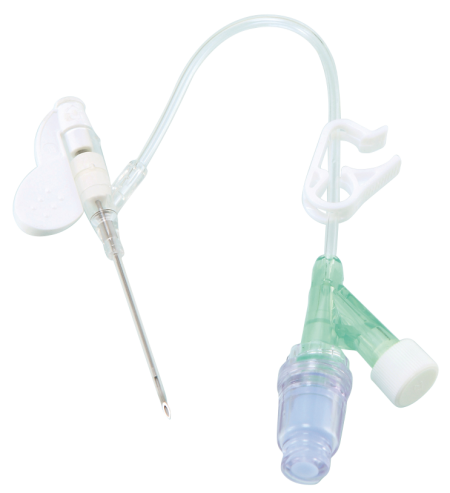

| 6241841 | Y type | |||
| 6251842 | Normal | |||
| 6261844 | Positive Pressure | |||
| 6322042 | 20G | 30mm | Double Safety (safety + positive pressure) | Pink |
| 6312041 | Safety | |||
| 6242031 | 25mm | Y type | ||
| 6252032 | Normal | |||
| 6262034 | Positive Pressure | |||
| 6322231 | 22G | 25mm | Double Safety (safety + positive pressure) | Blue |
| 6312231 | Safety | |||
| 6242231 | Y type | |||
| 6252232 | Normal | |||
| 6262234 | Positive Pressure | |||
| 6322422 | 24G | 19mm | Double Safety (safety + positive pressure) | Yellow |
| 6312421 | Safety | |||
| 6242421 | Y type | |||
| 6252422 | Normal | |||
| 6262424 | Positive Pressure | |||
| 6322612 | 26G | 14mm | Double Safety (safety + positive pressure) | Purple |
| 6312611 | Safety | |||
| 6242611 | Y type | |||
| 6252612 | Normal | |||
| 6262614 | Positive Pressure | |||
